Tap to exploreELECTRICAL SHOCK ABSORBING STRETCHER SUPPORT
BOB Galaxy

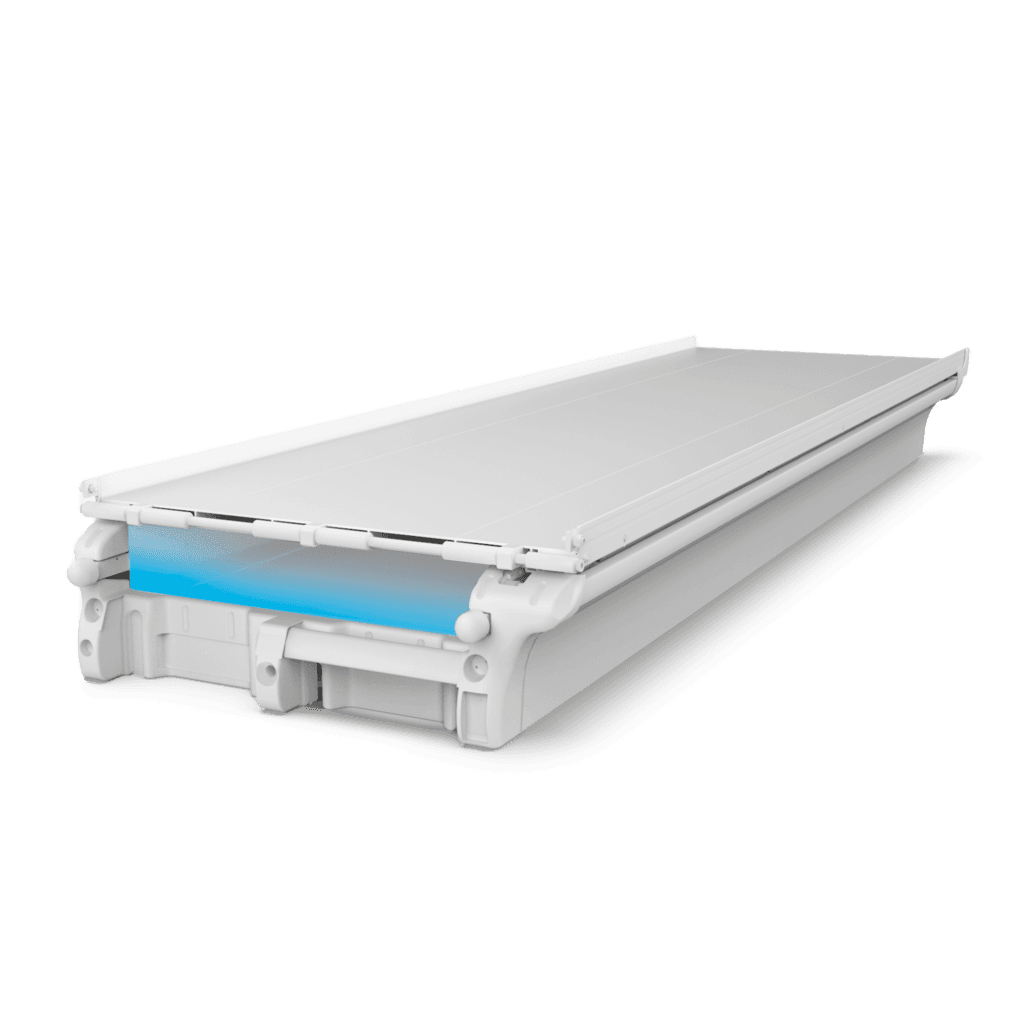

BOB Galaxy is an electrical stretcher support intended for installation on ambulances. It can be extracted, moved sideways, absorb shocks and vibrations, take a tilt back and front position and upgraded with patented accessories.
CERTIFIED
LOAD CAPACITY
SHOCK ABSORBENT
Highlights
EXTRACTION AND SIDEWAYS MOVEMENT
BOB Galaxy can be extracted, moved sideways manually (both left and right) and forward.
Other specifications
- Compatible with
- destinations use and benefits
- downloadable resources
Compatible with
Sensor Lock
Sensor Lock is smart 10G fastening system for stretchers. The mechanism safely locks the stretcher to the ambulance floor (or board) without engaging any handle on the device itself, and increased safety for operators and patients thanks to acoustic and visual information signals to show if the stretcher is fastened / not fastened / not properly fastened. It is equipped with advanced maintenance control systems.
Destination and use benefits
This is product is specially designed for:
EMS equipment
BOB GALAXY is able to assume several positions that facilitate both loading and unloading of the stretcher, allowing at the same time easier access to the stretcher.
- The patented design increases the available space for seat and walk of rescuers
- The structure of the support plane makes it non-deformable
- Can assume the positions tilt front and tilt back
- Electronically controlled height adjustment system dedicated to make the stretcher loading easier
- The control panel can be integrated in the structure and its position can be customized
- Operating handles are easily accessible
- Suspension automatically regulated according to the patient weight
- Lockable allowing to perform CPR
- Extraction in tilted position to allow easy loading/unloading of the stretcher
- Can be moved sideways manually (both left and right)
- The device automatically returns in horizontal position once it is moved inside the vehicle
- Loading system with roller (slide 120/180/300/350 mm optional)
- Two dedicated compartments to store immobilization systems like spinal boards or pick-up stretchers.
- Extruded aluminum board easy to clean
- 10G tested and compatible with fasteners in compliance with EN 1865 ed EN 1789
Downloadables

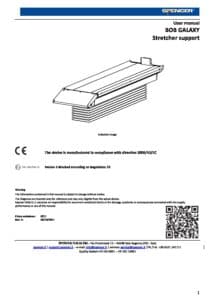

User Manuals (1)
View
Download
Copy to clipboard

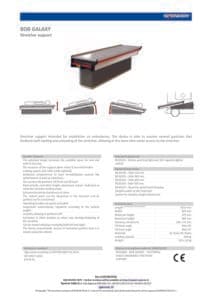

Technical sheets (1)
View
Download
Copy to clipboard
