Tap to exploreLUNG VENTILATOR WITH BUILT-IN PEEP FUNCTION

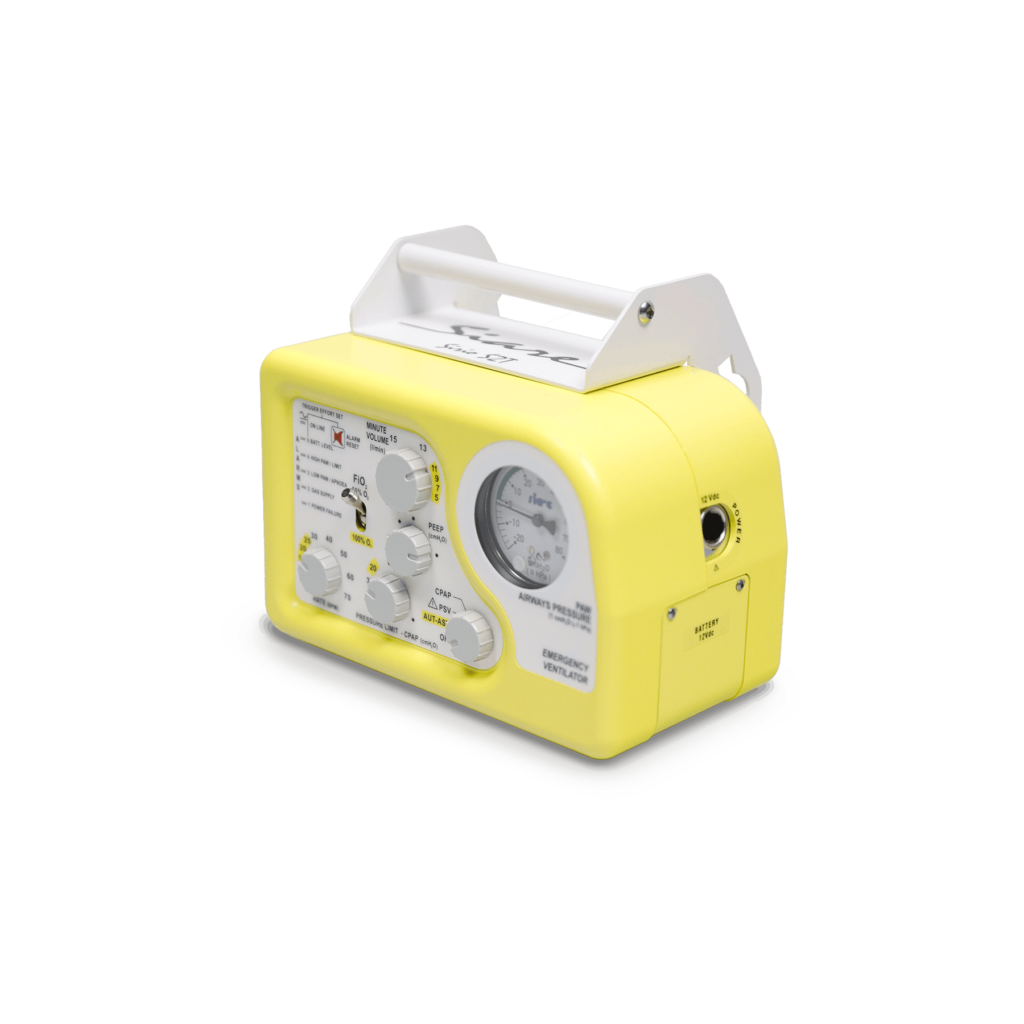

SIRIO S2/T
SIRIO S2/T is a medical device intended for the ventilation of adult, paediatric and neonatal patients (Min. body weight 3 kg). It is designed for use in healthcare facilities, emergency medical services, and during both intra-hospital and extra-hospital transport. The adjustable respiratory parameters include pressure limit, respiratory rate, PEEP and minute volume, allowing ventilatory support to be tailored to the patient’s clinical needs.
MAX. FLOW
WEIGHT
EASY TO APPLY
CARATTERISTICHE AGGIUNTIVE
STANDARD COMPLIANT
- EN 1789:2007+A2:2014
- D.LGS 49/2014 RAEE AND SUBSEQUENT MODIFICATIONS AND INTEGRATIONS
- EN 60601-1:2006/A1:2013
- EN 60601-1-2:2015
- IEC 60601-1-6:2013
- EN 60601-1-8:2007/A11:2017
- EN 62304:2006/AC:2008
- EN 794-3:1998+A2:2009
- DIR. 2011/65/CE
- D.Lgs 49/2014
- DIR. 2011/65/UE ROHS 2 AND SUBSEQUENT MODIFICATIONS AND INTEGRATIONS
- DIR. DELEGATED UE 2015/863 ROHS 3 AND SUBSEQUENT MODIFICATIONS AND INTEGRATIONS
ELECTRICAL SPECIFICATIONS
|
Electric power supply |
12Vdc or feeder: 100 – 240 Vac / 12Vdc |
|
Power consumption |
4,5 W |
|
Current consumption |
0,4 A – 12Vdc |
|
Standard internal battery |
One battery Pb (12V – 1,3Ah) |
|
Internal battery operation (standard)(1) |
7 hours (Tolerance ±15%) |
|
Battery re-charging time (standard) |
8 hours |
(1) Battery life is indicative and measured in AUT-AST mode with the following settings: pressure 10 cmH2O, PEEP OFF, rate 15 bpm, tidal volume 9 l/min.
LUNG VENTILATOR FUNCTIONAL FEATURES
|
Type of ventilation |
Volumetric IPPV – Pressure limited time cycled IPPV |
|
Control modality |
Electronic |
|
Pressure automatic compensation (altitude) |
Present |
|
Respiratory parameters default setting |
The trigger is reset every time the device is turned off. Default -1cmH2O |
|
Ventilation modes |
AUT + AST / PSV + APNOEA BACK UP / PEEP / CPAP |
|
Breathing rate |
From 5 to 70 bpm |
|
Max-Min Inspiratory Time / Expiratory Time (4) |
Insp Time: from 0,343 to 4,8 Exp Time: from 0,514 to 7,2 |
|
Tidal volume |
From 15 to 3000 ml |
|
Minute volume |
From 1 to 16 l/min |
|
I:E ratio |
1:1.5 |
|
Inspiratory pause |
Automatic setting during PSV mode |
|
Pressure support ventilation |
Adjustable from 0 (SPONT.) to 50 cmH2O |
|
Pressure limit |
Adjustable from 0 to 50 cmH2O |
|
PEEP |
Adjustable from 0 to 20 cmH2O |
|
Flow trend |
Constant and decreasing (PSV) |
|
O2 concentration |
50% O2 or 100% O2 |
|
Trigger detective method |
Through pressure transducer |
|
Pressure trigger ( I ) |
Adjustable from -1 to -5 cmH2O |
|
Inspiratory flow (FLOW) |
Max 40 l/min |
|
Patient circuits |
Single hose with exhalation valve |
Note: (4) Determined by Respiratory Rate.
ENVIRONMENTAL CONDITIONS
|
Operation |
|
|
Relative humidity |
15 – 95% non-condensing |
|
Temperature |
from -10 to +40°C |
|
Atmospheric pressure |
600hPa -1200hPa |
|
Storage |
|
|
Relative humidity |
< 95% non-condensing |
|
Temperature |
from -25 to +70°C |
|
Atmospheric pressure |
200hPa -1200hPa |
ALARMS
|
Remaining battery level from 100% to 51% |
Green LED |
|
Remaining battery level from 50% to 26% |
Yellow LED |
|
Remaining battery level from 25% to 0% |
Red LED |
|
O2 Supply |
Low gas supply pressure |
|
High PAW |
High airway pressure. Higher than 55 cmH2O |
|
Low PAW / Apnea |
Low airway pressure. Lower than 8 cmH2O |
|
Power failure |
Indicates that the device is disconnected from the mains supply |
FASTENING SYSTEMS REQUESTED
QUICK-RELEASE 10G PLATE for wall mounting of the tubular support. (Code EV20431) :
- Dimensions: 21 x h40 x 10 cm.
- Weight: 1,7 kg.
- Material: Lightweight aluminium alloy.
TUBULAR SUPPORT for transporting a mechanical ventilator and a 2 L oxygen cylinder, with a Cordura bag (Code EV20430)
- Dimensions: 45 x h41 x 35 cm.
- Weight: 3,9 kg.
- Material: Steel.
