EMERGENCY VENTILATOR WUTH BREATHING MONITOR

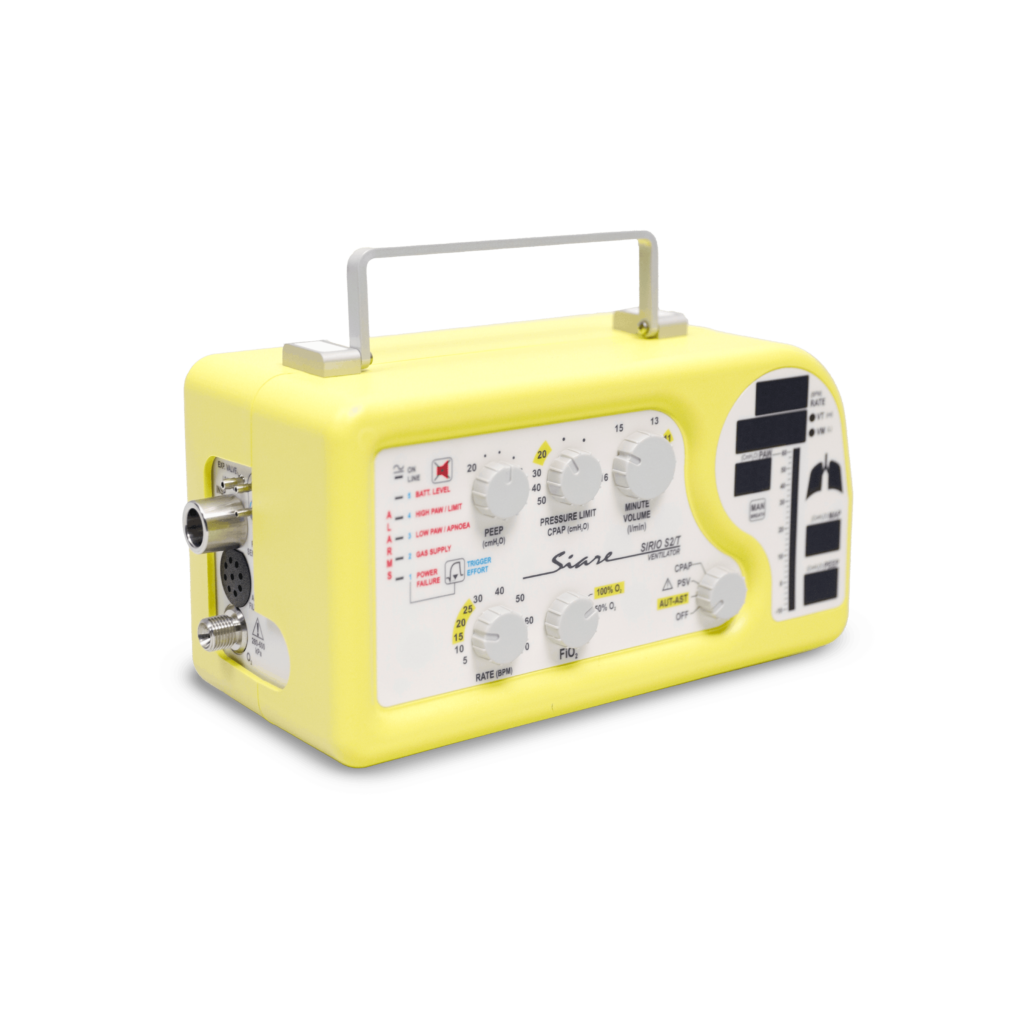

SIRIO S2/T WITH SPIROMETER

The SIRIO S2/T is a medical device intended for the ventilation of adult, paediatric and neonatal patients (minimum 3 kg), designed for use in healthcare facilities, for emergency medical care, and during transport both within and outside hospitals. The adjustable respiratory parameters include pressure limit, respiratory rate, PEEP, minute volume and FiO2, allowing ventilatory support to be tailored to the patient’s needs.

MAX. FLOW

WEIGHT

EASY TO APPLY

TECHNICAL DATA

EV20410 Sirio S2/T

Show more details

ADDITIONAL FEATURES

STANDARDS COMPLIANT

EN 60601-1:2006/A1:2013
EN 60601-1-2:2015
IEC 60601-1-6:2013
EN 60601-1-8:2007/A11:2017
EN 62304:2006/AC:2008
EN 794-3:1998+A2:2009
DIR. 2011/65/CE
D.Lgs 49/2014
DIR. 2011/65/UE RoHS 2 and subsequent modifications and integrations
DIR. Delegated UE 2015/863 RoHS 3 and subsequent modifications and integrations

SUPPLY FEATURES

Electric power supply	12Vdc or feeder: 100 – 240 Vac / 12Vdc
Power consumption	9 W
Current consumption	0,04 A – 220 Vac / 0,8 A – 12Vdc
Standard internal battery	1 Pb battery
Internal battery operation (standard)(1)	6,30 hours (Tolerance ±15%)
Battery re-charging time (standard)	8 hours

(1) Battery life is indicative and measured in AUT-AST mode with the following settings: pressure 10 cmH₂O, PEEP OFF, rate 15 bpm, tidal volume 9 l/min.

LUNG VENTILATOR FUNCTIONAL FEATURES

Type of ventilation	IPPV volumetric – IPPV time cycled with PRESSURE SUPPORT
Control modality	Electronic
Pressure automatic compensation (altitude)	Present (max. 5000 mt)
Respiratory parameters default setting	The trigger is reset every time the device is turned off. Default – 1cmH₂O
Ventilation modes	AUT + AST / PSV + APNOEA BACK UP / PEEP / CPAP
Breathing rate	From 5 to 70 bpm
Max-Min Inspiratory Time / Expiratory Time (4)	Insp Time: from 0,343 to 4,8 Exp Time: from 0,514 to 7,2
Tidal volume	From 15 to 3000 ml
Minute volume	From 1 to 16 l/min
I:E ratio	1:1.5
Inspiratory pause	Automatic setting during PSV mode
Pressure support ventilation	Adjustable from 0 (SPONT.) to 50 cmH₂O
Pressure limit	Adjustable from 0 to 50 cmH₂O
PEEP	Adjustable from 0 to 20 cmH₂O
Flow trend	Constant and decreasing (PSV)
O₂concentration	50% O₂ or 100% O₂
Trigger detective method	Through pressure transducer
Pressure trigger ( I )	Adjustable from -1 to -5 cmH2O
Inspiratory flow (FLOW)	Max 40 l/min
Patient circuits	Single hose with exhalation valve

Note: (4) Determined by Respiratory Rate.

PARAMETERS

Adjustable physiological respiratory parameters

Pressure limit, respiratory rate, PEEP, Minute volume and FiO₂

Measured parameters

Respiratory rate (range: 0 ÷ 200 bpm)

Rate accuracy ± 1 Bpm

PAW: peak, mean, plateau, PEEP (range -20 ÷ 80 cmH2O)

Pressure accuracy ± (2 cmH2O + 4% of the reading).

Tidal Volume: Vte (range: 15 ÷ 3000 ml)

Minute Volume (range: 1 ÷16 l/min)

Volume Accuracy ± 20% for volumes> 50ml

Expired Volume Accuracy ± (20% or ± 15ml) whichever is greater for volumes ≤50ml

Displayed parameters

Breathing cycle corrected by lungs icon, Breathing Rate (RATE), Expired Tidal Volume (VT), Minute Volume (VM), Instant Airways Pressure and Peak Airways Pressure (PAW), Mean Pressure (MAP), End Expiration Pressure (PEEP)

Environmental Conditions

Operation
Relative humidity	15 – 95% non-condensing
Temperature	from -10 to +40°C
Atmospheric pressure	600hPa -1200hPa


Storage
Relative humidity	< 95% non-condensing
Temperature	from -25 to +70°C
Atmospheric pressure	200hPa -1200hPa

ALARMS

Remaining battery level from 100% to 51%	Green LED
Remaining battery level from 50% to 26%	Yellow LED
Remaining battery level from 25% to 0%	Red LED
O₂ Supply	Low gas supply pressure
High PAW	High airway pressure. Higher than 55 cmH₂O
Low PAW / Apnea	Low airway pressure. Lower than 8 cmH₂O
Power failure	Indicates that the device is disconnected from the mains supply

FASTENING SYSTEMS REQUESTED

Quick-release 10G plate for wall mounting of the tubular support.

Dimensions: 21 x h40 x 10 cm.
Weight: 1,7 kg.
Material: Lightweight aluminium alloy.

Tubular support for transporting a mechanical ventilator and a 2 L oxygen cylinder, with a Cordura bag.

Dimensions: 45 x h41 x 35 cm.
Weight: 3,9 kg.
Material: Steel.

Ulteriori specifiche

Included in the product
Accessories
Downloadables

Included in the product

Battery charger
12 V DC power cable
Oxygen tubing
Single-use PVC patient circuit with expiratory valve

Destination and use benefits

This is product is specially designed for:

Rescue Equipment

EMS equipment

ACCESSORIES

EV20432 Single-use adult/pediatric patient circuit for Sirio with expiratory valve and flow sensor (160 cm)
EV20433 Single-use adult/pediatric patient circuit for Sirio with expiratory valve (160 cm)
EV20434 Disposable flow sensor (pack of 6 units)
EV20435 O₂ connector AFNOR
EV20436 O₂ connector UNI
Additional battery pack (12 h autonomy)
